Feature
Auto bobbin feeder and doffing system
- Doffer automatic stops when bobbins run out.
- Mechanical system. No pneumatics, air quality, or air pressure to affect the service life and performance of the machine.
- Quick action and durable.
- 7 second doffing time.
Individual spindle control
- LCD display.
- Yarn length measured by computer, not rollers or wheels. Accuracy within 0.5%.
- Yarn speed adjustable from 300 to 1,600 meters/per minute.
- Uniform thread lubrication due to constant yarn speed.
- The oiling roller speed is adjustable and proportional to the yarn speed.
- Density adjustment with different yarn specifications.
- Automatic thread layer option.
- 250 sets of memory functions with production quantity preset.
Drum thread-guidance system
- High speed, low noise drum.
- Drum with special hardened polish treatment, smooth & wear resist.
Circulating oil system
- Centralized oil tank feeds 16 spindles.
- Spindle independent oil filter and filler for consistent trouble-free operation.
- Easy to clean, detachable filters.
- Oversized oil fenders and troughs to minimize oil loss and cleaning.
Electro-magnetic tensioner
- Automatic tension release throughout the cycle for consistent winding tension.
Specifications

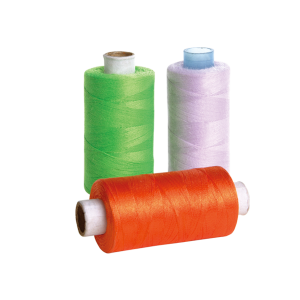

Package shape | Model-H |
Taper angle | 0° |
Max.Capacity | 2000 PCS/8hrs 40/2 500M |
Max diameter for | 100mm |
Traverse | 2″3″ |
No. of spindle | 4 |
Spindle speed | Max 1200 r.p.m |
Yarn speed | Max 1600 m/min |
Cross ratio | 2~4 |
Weight | N.W.1100kgs G.W.1400kgs |
Measurement | 225L x 143W x 210H(cm) |
All specifications and designs subject to change without notice.
- Standard Equipment

Drum thread-guiding system

Electro-magnetic tension

Constant lubrication system

Micro processor controller
- Optional

Circulating oiling tank

Hot circulating oiling tank

Circulating mixing oil tank

Dosing pump lubrication system

One computer terminal
